Model Y Control-Arm FEAModel Y 下控制臂 FEA

The lower control arm is one of the suspension's most safety-critical parts: it locates the wheel, reacts braking and cornering loads, and if it fails the wheel goes with it. The task was to find where the Model Y front arm is most vulnerable — and propose what to do about it.下控制臂是悬架中最安全攸关的零件之一:它定位车轮、承受制动与转向载荷,一旦失效车轮随之失控。任务是找出 Model Y 前下控制臂最脆弱的位置——并提出对策。

01Model & load case模型与载荷工况

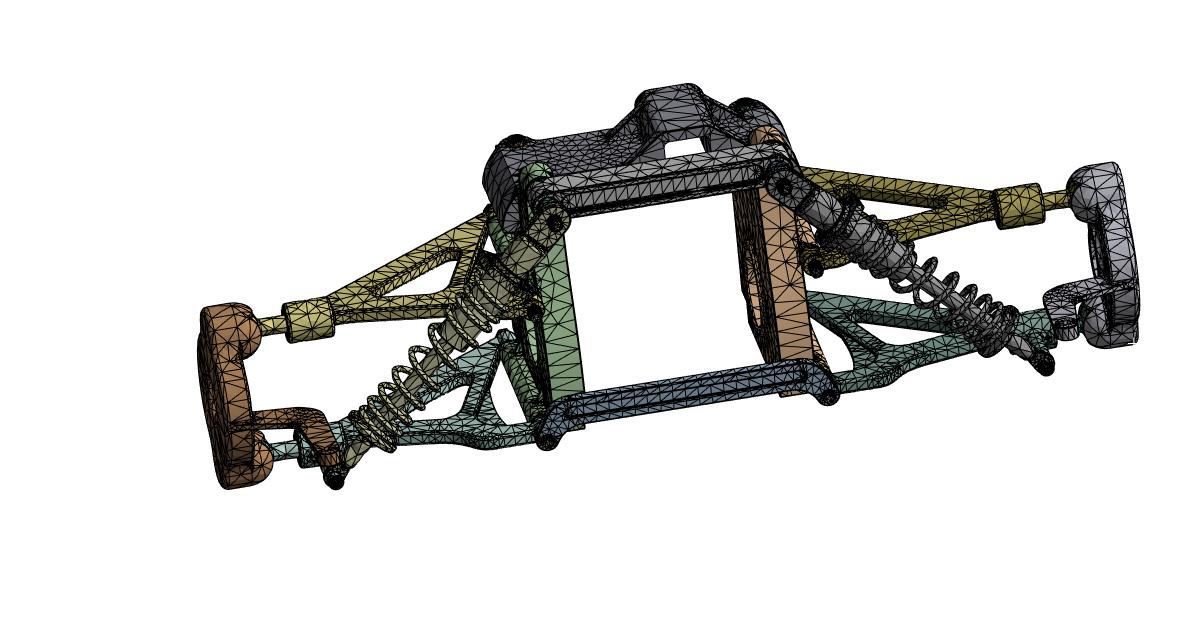

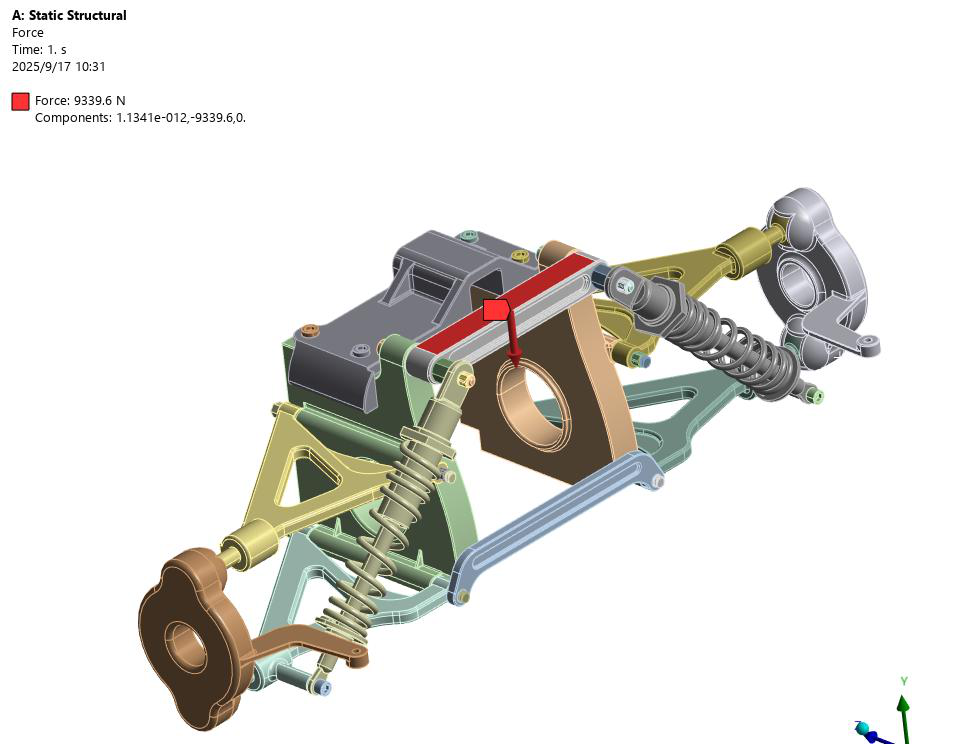

The full front-suspension corner was meshed in ANSYS Mechanical, with bonded and no-separation contacts defined at the bolted joints so load transfers realistically between the arm, the bolts and the frame. The governing case applies a ~9.3 kN vertical load with the frame mounts fixed.整个前悬架角总成在 ANSYS Mechanical 中划分网格,螺栓连接处定义 bonded 与 no-separation 接触,使载荷在控制臂、螺栓与车架间真实传递。主导工况为 ~9.3 kN 垂向载荷,车架安装点固定。

02Finding the weak point定位薄弱点

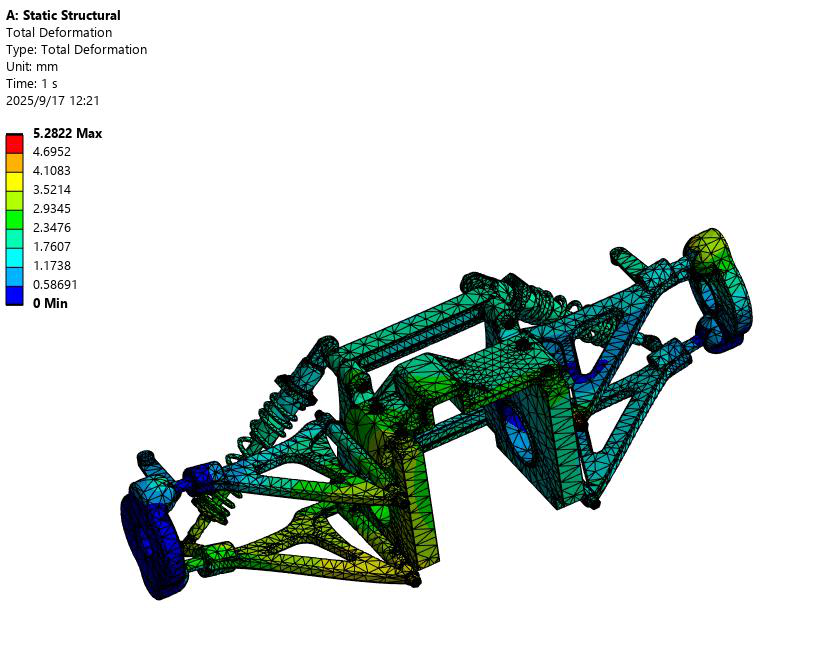

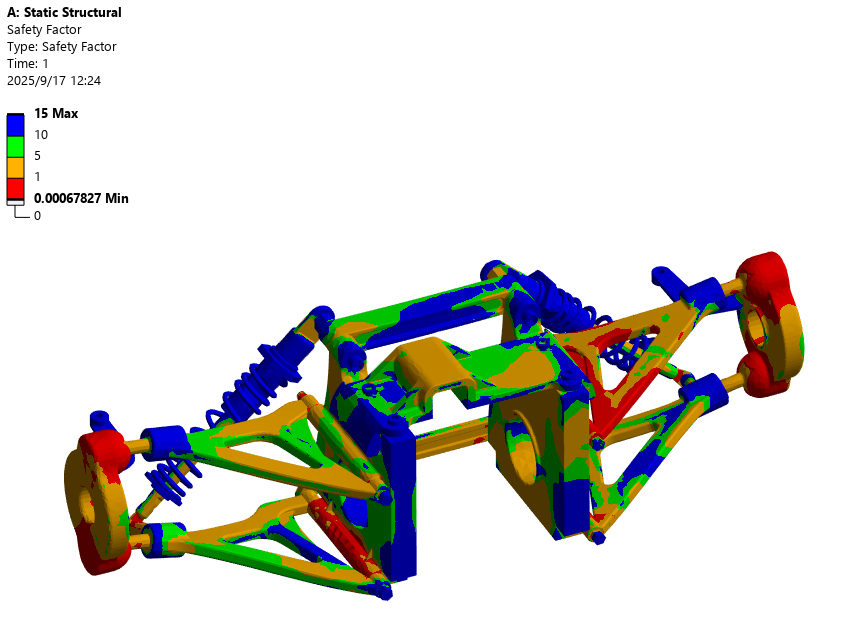

The solved model shows a maximum total deformation of 5.28 mm and concentrates both stress and minimum safety factor at the root region of the arm — the transition where the arm meets its rear bushing. Under the governing load the local safety factor collapses toward zero there, marking it as the failure-critical region that any redesign has to fix first.求解结果显示最大总变形 5.28 mm,应力与最小安全系数都集中在控制臂根部——臂身与后衬套的过渡区。在主导载荷下该处局部安全系数逼近于零,是任何重设计都必须优先解决的失效关键区。

03Redesign & material trade重设计与材料权衡

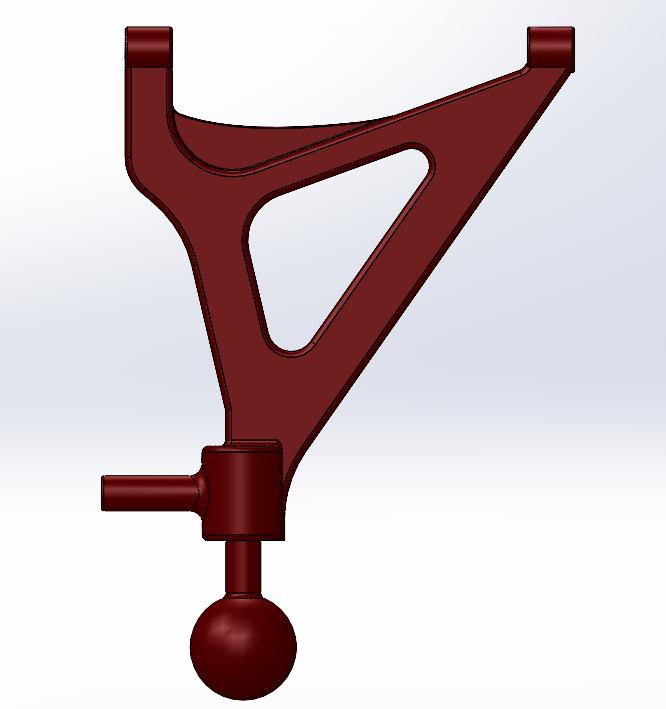

The proposal strengthens the root with added ribs and larger fillets while removing material where the topology can afford it, and trades the baseline alloy against 7075-T6 aluminium and a CFRP layup — weighing stiffness-to-weight, fatigue behaviour, cost and manufacturability rather than chasing a single number.方案在根部增加加强筋并放大圆角,同时在拓扑允许处去除材料;并将基线合金与 7075-T6 铝和 CFRP 铺层做对比——综合权衡比刚度、疲劳表现、成本与可制造性,而非只追一个指标。

04FMEA & manufacturingFMEA 与制造

A failure-mode analysis ranked root fracture, ball-joint loosening and bushing ageing as the arm's dominant risks, tying each to a detection and mitigation route. On the manufacturing side, the trade study across forging, casting and machining landed on high-pressure die casting as the best fit for the redesigned geometry at volume.失效模式分析将根部断裂、球头松脱与衬套老化列为控制臂的主要风险,并为每一项对应检测与缓解路径。制造侧在锻造、铸造与机加工之间做权衡,最终选定高压铸造作为该重设计几何在量产下的最优工艺。

05What it demonstrates它说明了什么

A complete structural-design loop on a safety-critical automotive part: assembly-level FEA with honest contact modelling, a defensible diagnosis of the weak region, and a redesign argued through materials, FMEA and manufacturing — the same loop a production structure goes through.在一个安全攸关的汽车零件上走完整的结构设计闭环:带真实接触建模的总成级 FEA、对薄弱区站得住脚的诊断,以及经材料、FMEA 与制造论证的重设计——与量产结构件走的是同一个闭环。
